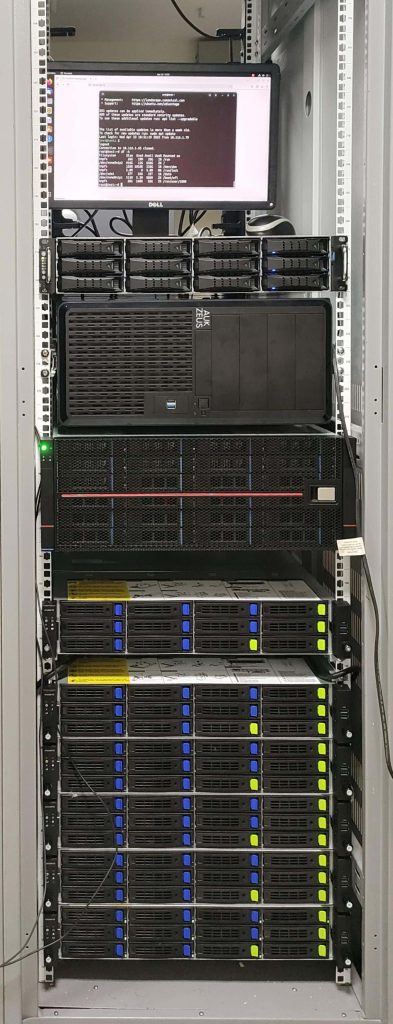

Details of High End Computer Cluster
- 1 Master Node
- 5 Compute Nodes
- Primary Switch – HDR
- Secondary Switch – 24 Port Gigabit.
Master Node
Processor | AMD EPYC 7543 processor with 2.8GHz base frequency, Max. Boost Clock Up to 3.7GHz, 32 Cores, 64 Threads, 256MB Cache, 255W. |
RAM | 32GB DDR4 3200 ECC Registered memory. (Total 128GB DDR4 3200 ECC Registered memory) |
Hard Drives | 8TB 3.5″ 7200 RPM SAS HDD |
LAN | Dual 1GBPS LAN port (intel i350-AM2) |
RAID Card | H/W RAID Controller that supports RAID 0/1/5/6/50/60 with 4GB cache |
NIC | 2 x Intel® 1350 GbE Controller |
OS | Rocky Linux |
Compute Nodes
Processor | AMD EPYC 7543 processor with 2.8GHz base frequency, Max. Boost Clock Up to 3.7GHz, 32 Cores, 64 Threads, 256MB Cache, 255W. |
RAM | 32GB DDR4 3200 ECC Registered memory. (Total 256GB DDR4 3200 ECC Registered memory) |
Hard Drives | 960GB SATA SSD 2.5″ ENT 1DWPD |
LAN | Dual 1GBPS LAN port (intel i350-AM2) |
GPU card | NVIDIA A100 Tensor Core GPU |
NIC | 2 x Intel® 1350 GbE Controller |
OS | Rocky Linux |
